The Magic of the SSL G-Series Bus Compressor

Few pieces of gear command as much reverence as the Solid State Logic (SSL) G-Series Stereo Bus Compressor. It’s the “secret sauce” that many top engineers swear by, the “glue” that holds a mix together, and the reason countless records sound so cohesive and powerful. But what exactly is bus compression, and how did this particular black box achieve legendary status? Let’s dive in to The Magic of the SSL G-Series Bus Compressor.

A Brief History of Bus Compression: The Birth of “Glue”

To understand the SSL G-Comp, we first need to grasp the concept of bus compression itself. Compression, at its core, is dynamic range control – it reduces the difference between the loudest and quietest parts of an audio signal. While individual tracks often get their own dedicated compression, bus compression applies compression across an entire group of tracks, or most famously, the entire stereo mix.

The idea of compressing a whole mix isn’t a modern invention. Early mastering engineers, for instance, were using various forms of compression and limiting on final masters to achieve greater loudness and a more consistent sound. However, the application of compression during the mixing stage to a stereo bus, with the specific intent of “gluing” elements together, really began to gain prominence with the advent of sophisticated analog mixing consoles in the 1970s and early 1980s.

Engineers started experimenting with running their entire mix through a single stereo compressor. They found that even subtle amounts of compression didn’t just make the mix louder; it subtly linked the disparate elements – drums, bass, guitars, vocals – making them sound like they were breathing and moving as one cohesive unit, rather than individual parts simply playing simultaneously. This phenomenon became affectionately known as “mix glue.”

Enter the Legend: The SSL G-Series Stereo Bus Compressor

While other compressors existed, it was the Solid State Logic SL 4000 E Series console, introduced in the late 1970s, that brought the bus compressor to the forefront. These consoles were renowned for their advanced routing, automation, and powerful channel strips. But the real game-changer for many was the stereo compressor built into the master section. This was the precursor to what we now know as the G-Series compressor (which arrived with the later SL 4000 G Series console).

The SSL console quickly became the standard in major studios worldwide, especially for rock, pop, and R&B productions. As engineers mixed on these consoles day in and day out, they discovered that simply engaging the master bus compressor, even with modest settings, instantly elevated the sound of their mixes. It became an indispensable tool, a non-negotiable part of the mixing workflow.

What Does it Actually Do to the Signal?

The magic of the SSL G-Comp lies in its VCA (Voltage Controlled Amplifier) design. Unlike optical or FET compressors, VCA compressors are known for their fast, clean, and transparent operation. When applied to a full mix, the SSL G-Comp:

“Glues” the Mix: This is its most famous attribute. By subtly reducing the dynamic peaks across the entire stereo field, it subtly ties together elements. A kick drum hit, for example, might momentarily duck the entire mix ever so slightly, creating a pumping action that makes the kick feel more integrated and powerful, and the whole mix feel more unified.
Adds Punch and Impact: With the right attack and release settings, the G-Comp can enhance the transients of drums and bass, making them hit harder and feel more defined.
Increases Perceived Loudness: By controlling the dynamics, the compressor allows you to raise the overall level of the mix without hitting digital overs as quickly, leading to a louder, more competitive sound.
Creates Consistency: It smooths out dynamic inconsistencies, ensuring that the mix maintains a more even energy level from start to finish.
Imparts a Sonic Signature: Beyond just dynamic control, the G-Comp adds a subtle but recognizable character – a slight polish, a bit of sheen, and a firming up of the low end that many engineers crave. It’s often described as adding a “finished” sound.

Dialing in the Magic: Ideal Settings for Different Genres

While there are “classic” starting points, the beauty of the G-Comp is its versatility. The ideal settings will always be program-dependent and require listening, but here are some genre-specific guidelines:

1. The Classic “Mix Glue” (General Purpose)

Ratio: 2:1 (for subtle cohesion) or 4:1 (for more aggressive glue/punch)
Attack: 10 ms or 30 ms (Slow enough to let transients through, preserving punch)
Release: Auto (Program dependent, often musical) or 0.1 s (Fast but not overly pumpy)
Threshold: Adjust for 2-4 dB of gain reduction on peaks.
Make-up Gain: Compensate to match original perceived loudness.

2. Rock/Pop: Punchy & Cohesive

Ratio: 4:1 (To really grab those drums and guitars)
Attack: 3 ms or 10 ms (Faster to catch the impactful hits)
Release: 0.1 s or 0.3 s (Can be faster to emphasize groove, or slightly slower for a smoother sustain)
Threshold: Aim for 3-6 dB of gain reduction. This will make the mix feel more “forward” and aggressive.

3. Electronic Dance Music (EDM)/Hip-Hop: Driving & Pumping

Ratio: 4:1 or even 10:1 (For more noticeable pumping and aggressive leveling)
Attack: 3 ms (Very fast to catch those sharp synth stabs and hard-hitting drums)
Release: 0.1 s or 0.3 s (Often set quite fast to create a noticeable “pump” that breathes with the beat. Experiment with tempo sync.)
Threshold: 4-8 dB of gain reduction, sometimes more if a strong pumping effect is desired as a creative element.
Notes: For extreme pumping, a faster release might be used, but be careful not to create an unnatural “chattering” sound.

4. R&B/Urban: Smooth & Controlled

Ratio: 2:1 or 4:1 (To maintain smoothness while still providing glue)
Attack: 10 ms or 30 ms (Slower attack helps maintain the warmth and roundness of bass and vocals)
Release: Auto or 0.3 s (A slightly slower release can help sustain pads and vocals, creating a lush feel)
Threshold: 2-5 dB of gain reduction. The goal is transparency and polish, not heavy compression.

5. Acoustic/Jazz: Transparent & Natural

Ratio: 2:1 (Subtle is key; avoid over-compression)
Attack: 30 ms or 100 ms (Very slow to preserve natural transients and dynamic nuances)
Release: Auto or 0.6 s (Slower release times will be more transparent and less noticeable)
Threshold: 1-3 dB of gain reduction. The compressor should be barely working, just gently massaging the dynamics.

Beyond the Analog: Plugins and Emulations

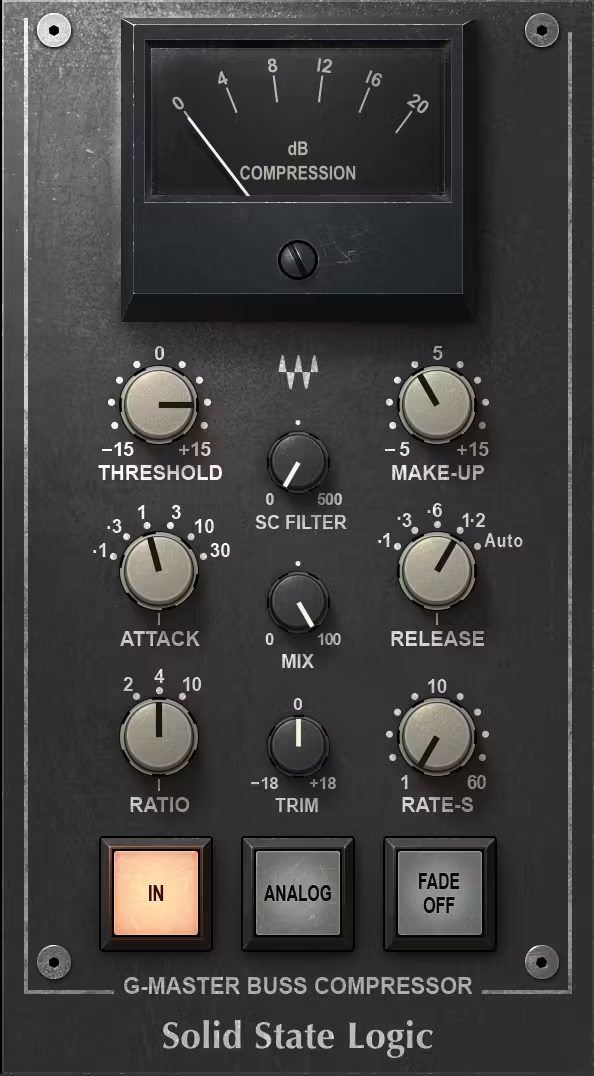

Today, most of us don’t have access to a vintage SSL 4000 console. Thankfully, countless software emulations from companies like Universal Audio, Waves, Native Instruments, and Plugin Alliance have brought the sound of the SSL G-Bus compressor to our DAWs. While no plugin can perfectly replicate every nuance of a complex analog circuit, these emulations do an exceptional job of capturing the core characteristics and the “feel” of the original.

Conclusion: A Legacy of “Glue”

The SSL G-Series Stereo Bus Compressor isn’t just another piece of audio gear; it’s a mixing philosophy embodied in a circuit. From its origins in the groundbreaking SSL consoles of the 80s, it has evolved into an indispensable tool that defines the sound of countless genres. Whether you’re aiming for subtle cohesion, aggressive punch, or smooth control, understanding and utilizing this legendary compressor can truly transform your mixes from a collection of individual tracks into a unified, powerful musical statement. So go ahead, dial in those settings, and experience the magic of the “mix glue” for yourself!
