Is True Analog Tape Compression Impossible in the Box?

Deconstructing the Elusive “Glue” of Tape Emulation

The Producer’s Question – By Simon Duggal

Analog Authority and Provenance

With over three decades in the music industry, my records have earned nominations for 2 Grammy Awards, 3 Brit Awards, and a Mercury Music Prize, alongside my own nomination for a coveted Ivor Novello Award for Best Contemporary Song. I was born and brought up on tape machines – I know my tape machines. I’ve worked on, owned, and regularly used classic analog gear throughout my career, including the Fostex R8, Fostex E16, Tascam MSR 24, Soundtracs Saturn 824, the OTARI MTR 90 MKII, and the legendary 3M M23. I worked extensively on the MCI JH24 tape machine at Bob Marley’s Tuff Gong studio in Kingston, Jamaica. I used the best tape formulations like Ampex 456 gold. This extensive history is the benchmark against which I evaluate modern digital tools, including the most highly-regarded tape emulation plugins such as UAD ATR 102, UAD Studer A800, Acustica Taupe Studio, etc.

My Point of Contention: While today’s plugins are fantastic at adding saturation, EQ, and crosstalk, none of them sound anything like the machines I used. They miss the “magic glue.”

I believe this is because no plugin has successfully mimicked the true compression behavior of tape – that gentle softening of transients, the unique dynamic footprint, and the resulting compressed and saturated sound that knits a mix together.

The Question: Why, despite decades of development, has this been technically elusive? What are the precise engineering roadblocks, and how can the industry finally achieve a truly indistinguishable tape dynamic model?

Deconstructing the Elusive “Glue”

The heart of my contention – the failure of current tape emulation to truly replicate the “magic glue” – rests on a fundamental discrepancy between highly-optimized digital processing and the complex, interwoven physics of high-flux magnetic recording. Simply put, plugins excel at static spectral color but falter at dynamic non-linearity.

Here is my breakdown of the precise engineering and theoretical roadblocks that prevent the achievement of truly indistinguishable tape dynamic modeling:

1. The Hysteresis Loop: The Core of Dynamic Compression

The most profound failure lies in accurately modeling the instantaneous, signal-dependent behavior governed by the magnetic hysteresis.

• Transient Modulation: When a sharp, high-velocity transient – a sudden large dB/dt change hits the tape, it pushes the magnetic flux well into the saturation region of the loop. This is not simple clipping; the rapid change in flux density momentarily and non-linearly alters the magnetic permeability of the tape medium itself. This mechanism inherently softens the leading edge of the transient, acting as an ultra-fast, feed-forward dynamic processor with an instantaneous and infinitely variable “knee.”
• The Plugin Limitation: Most digital emulations use oversampled polynomial functions or piecewise linear models to mimic the static shape of the transfer curve. They treat saturation as a zero-latency, instantaneous distortion of the waveform’s amplitude. They miss the time-domain dependence—the fact that the saturation threshold itself is dynamically modulated by the signal’s history and its rate of change.

2. Signal-Dependent Time Constants and Magnetic Memory

The perceived “glue” is fundamentally a manifestation of the tape’s magnetic memory. The effect is fast, but not instantaneous.

• Finite Attack/Release: The finite time it takes for the magnetic domains to fully align and realign (the lag inherent in the hysteresis cycle imparts a crucial, non-symmetrical attack and release characteristic to the saturation. This is why tape compression sounds musical rather than grabby. The flux level at time t is dependent on the flux level at time t-Delta, where Delta t is extremely small but non-zero.
• Modeling Requirement: To accurately model this requires computationally expensive non-linear, time-domain simulation, often involving Wave Digital Filters (WDFs) or solving complex differential equations that describe the magnetic interaction. Standard oversampled saturation algorithms fail because they fundamentally lack this inherent system memory.

3. Interdependence of Frequency, Bias, and Level

The dynamic action is further complicated by its frequency dependence and the influence of the bias current.

• Pre-emphasis/De-emphasis: The interaction between the recording equalization (pre-emphasis) and the high-frequency saturation characteristics means that the dynamic behavior is not uniform across the spectrum. High-frequency transients are processed differently than low-frequency ones.

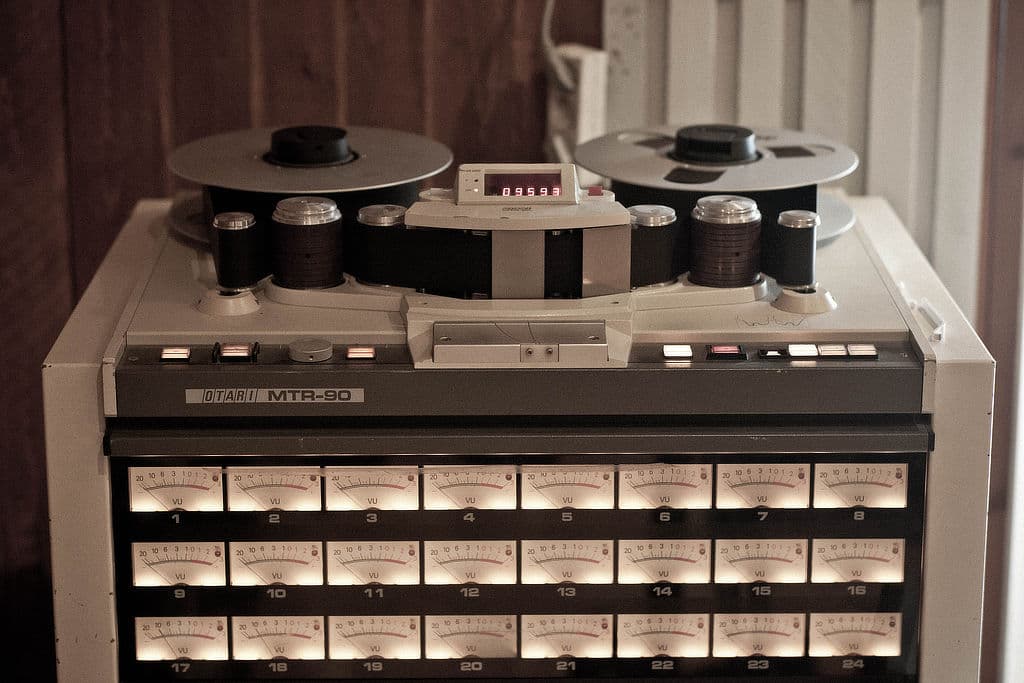

• Bias Influence: The choice and optimization of the AC bias current (which minimizes non-linearities at low levels) significantly impacts the precise point and contour where level dependent compression kicks in at high frequencies. This optimization, which was critical on machines like the OTARI MTR 90 is often reduced to a simple static parameter in a plugin, rather than a dynamic variable.

The Path to True Emulation: Computational Intensity

The solution requires moving beyond spectral approximations and embracing true physics-based or machine-learned dynamic systems:

1. Full Physical Modeling (White Box): Adopting computationally intensive time-domain solvers that physically model the head/tape flux interaction and the dynamic hysteresis on a sample-by-sample basis.
2. Advanced Machine Learning (Black Box): Utilising Deep Neural Networks trained on forensic analysis of the input/output transformation of a wide variety of signals and transients recorded across varying levels and bias settings on machines like the MCI JH24 or OTARI MTR 90 KII. The AI must learn to predict the dynamic time-variant changes in the output signal, not just the static spectral changes.

Join the Discussion: Have You Found the Glue?

This entire discussion – from the MCI JH24 at Tuff Gong to the dynamic limitations of Wave Digital Filters – is designed to spark a vital conversation. I’ve laid out the technical case for why I beleive true analog dynamic compression, the “magic glue” of tape, remains elusive.

Now, I want to hear from you, fellow producers and mixing engineers: Do you agree that the dynamic behavior is the missing link in your digital mixes? If you’ve managed to find a plugin or technique that convincingly replicates that transient softening and cohesion – that glue – please share your secrets in the comments below. (And to the developers, especially those utilising advanced sampling techniques like Acustica, we’d particularly value your insight on whether the hysteresis gap is the central technical challenge. Let’s discuss the physics and the practical reality of using tape emulations in the 21st century!
